SaniAssist™ Installation

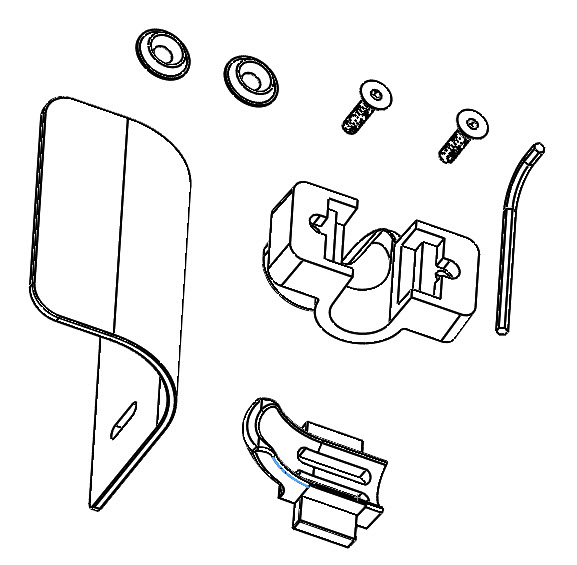

Parts in Box

Item

Description

Required
20304014
Bracket
1
20304127
Spacer
1
20304100
Cuff
1
#10
Washer
2
#10-32-3/4" lg
Flat Head Screw
2
1/8"
Hex L-Key
1

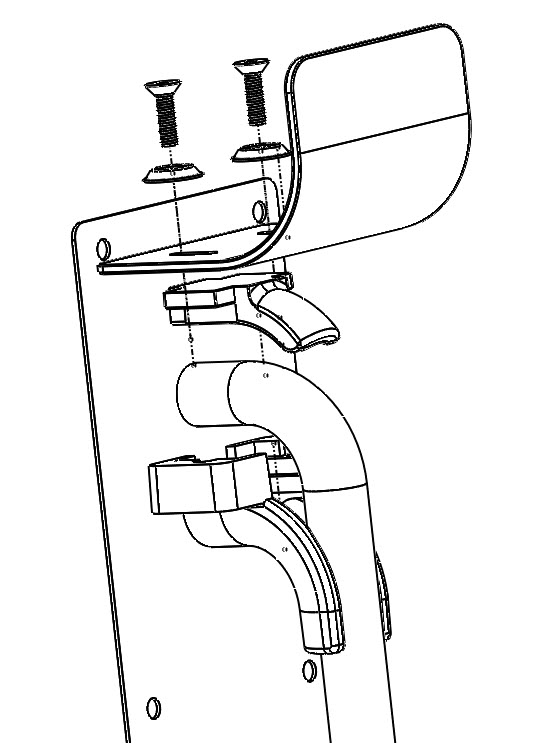

SaniAssist Assembly Instrustions



1. Position Item 1 (Bracket) on the underside of the door handle pulling it up and forward until in full contact with the handle.
2. Position Item 2 (Spacer) between Item 1 (Bracket) & Item 3 (Cuff)
3. Install Items 4 (Flanged Washers) & Items 5 (Flat Head Screws) and tighten evenly with Item 6 (Hex L-Key).
4. Keep alternately tightening the screws until the SaniAssist® hands-free door pull is securely attached to the door handle.
